The Printed PET Construction Film is specifically designed as a polymeric facer for laminating with expanded polystyrene (EPS) foam board. The lamination film improves physical strength and provides resistance to mechanical stresses such as bending and breaking, prevents or reduces material loss in construction progress. After laminated with EPS foam, it could improve thermal insulation effect, as well as good barrier effect to water vapor. Printed patterns can be designed according to customer requirements, such as displaying the EPS manufacturer ’s company brand and product logo.

Laminating Film

Premium Construction PET Gloss Printed

ReadyLam Laminating Film

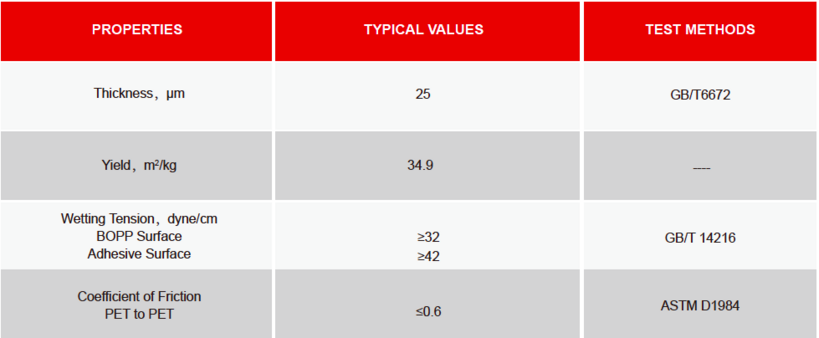

Technical Data

Application Technology

Window Film

​KDX America© 2021. All Rights Reserved.

Laminating Equipment

● Increase R-values after laminated with EPS

● High-quality printing as customer requirements
● Excellent adhesion strength

● Excellent resistance to tear & elongation

Features

Laminating Equipment : thermal laminating machine

Temperature : 95-120℃

Pressure : 8-18MPa

Speed : 10-70m/min

Adjust the processing parameter according to the production job requirement.
